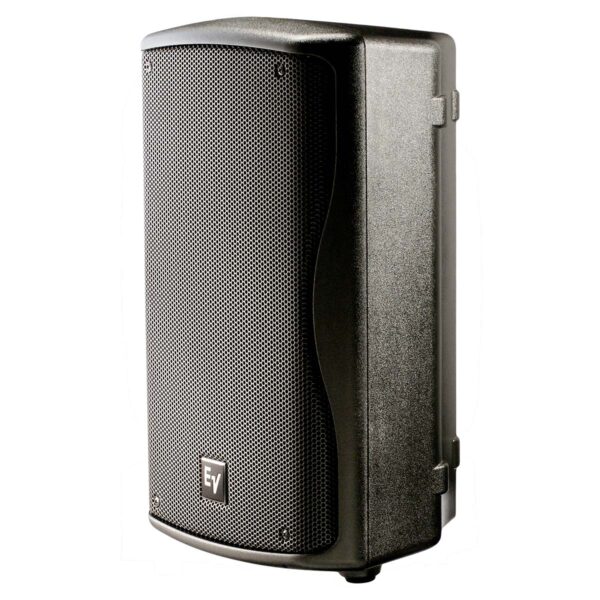

Electro-Voice ZX1-90 8″ Passive Speaker

Electro-Voice ZX1-90 8″ Passive Speaker

£342.00

Low Stock


Electro-Voice ZX1-90 8″ Passive Speaker – 8″ 2‑way passive full‑range composite loudspeaker. The Electro-Voice ZX1-90 8″ Passive Speakers produce a smooth, wide frequency response which is ideal for mains, fills, or monitors.

Low Stock

Seen this cheaper somewhere?




    Product Details







    EAN: 8717332601585 SKU: ZX1-90 Category: Brand:

    Overview

    Electro-Voice ZX1-90 8″ Passive Speaker

    EV 8″ 2‑way passive full‑range composite loudspeaker



    The Electro-Voice ZX1-90 8″ Passive Speakers produce a smooth, wide frequency response which is ideal for mains, fills, or monitors.

    • Velocity-compensated port for exceptional LF
    • Long-excursion weather-treated EV8L woofer
    • 1.25-inch DH2005 titanium HF compression driver
    • Rotatable 90º x 50º horn for flexible coverage
    • Passive crossover with full-band overload protection
    • High sensitivity, 123 dB maximum SPL
    • Power handling: 200 W continuous, 800 W peak
    • High-impact polypropylene enclosure
    • Compact monitor-friendly wedge shape
    • Integrated pole mount adapter and pocket handle
    • Metric mounting inserts (4)
    • Available in black or white

    See what our customers have to say on Trustpilot:

    proffesional, experienced , friendly , knowledgeable company.

    i used this company for the first time a week or so ago . i bought 4 equinox helix xp lights .delivery was a couple of days with a good parcel company . i found their website easy to navigate and their prices really competative .. i had a couple of questions so spoke to them on the phone which too was really easy and the answered promptly .. were professional and knew the answers .. all in all a fantastic experience and a quality product and company .. i will be using these again .. thankyou so much



    I would recommend them for anyone looking to purchase any music equipment.

    DJ Kit and production equipment from the UK’s biggest DJ store techformusic | Buy DJ Equipment at low prices | 0% Finance available.

    EV, ELECTROVOICE, ZX1, ZX1-90, EVZX, EV-ZX1

    Specifications

    Freq. Response¹ (-3 dB)60 Hz – 20 kHz
    Freq. Range¹ (-10 dB)48 Hz – 20 kHz
    Rec. Hipass Frequency40 Hz
    Axial Sensitivity¹92 dB (1W/1m)
    Max Calculated SPL121 dB
    Horizontal Coverage100°
    Vertical Coverage100°
    Rated System Power200W Cont. 2, 400W Prog., 800W Peak
    LF TransducerEV8L, 8 in (203mm) Driver
    HF TransducerDH2005, 1 in. (25.4mm) Exit Compression Driver
    Crossover Frequency1.7 kHz
    Nominal Impedance8 Ohms
    Minimum Impedance6 Ohms
    ConnectorsNeutrik Speakon NL4
    Enclosure MaterialHigh Impact Polymer
    GrillePolyester Powder Coated, 18GA Galvanized Steel
    Dim (H x W x D)457mm x 282mm x 264mm (17.98″ x 11.12″ x 10.38″)
    Net Weight8.4 kg (18.5 lbs)
    Shipping Weight10.2 kg (22.5 lbs)
