RCF ART 712-A MK5 & Sub 708-AS MK3 Bundle
RCF ART 712-A MK5 & Sub 708-AS MK3 Bundle
£3,399.00
Awaiting stock, ETA TBC. Join waiting list below.
The RCF ART 712-A MK5 & Sub 708-AS MK3 Bundle includes:
- 2 x RCF ART 712-A MK5 Active Speaker
- 2 x RCF SUB 708-AS MK3 Active Subwoofer
- 2 x Speaker Poles

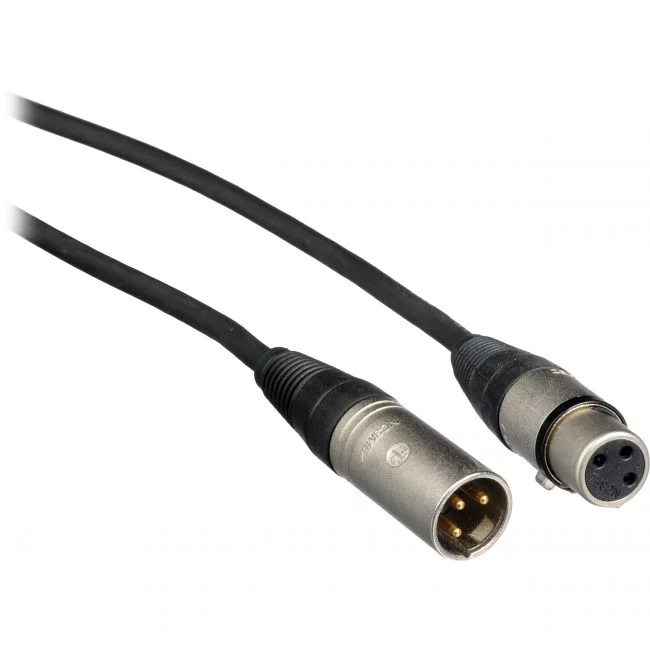

- 2 x 3M XLR Cables
– Please note: this item will need palleting, shipping charges will apply, the charges will be displayed at checkout!
Awaiting stock, ETA TBC. Join waiting list below.
Seen this cheaper somewhere?
Categories: Active Speakers, Live Sound, Speaker Packages
Brand: RCF, Stagg
The RCF ART 712-A MK5 & Sub 708-AS MK3 Bundle includes:
- 2 x RCF ART 712-A MK5 Active Speaker
- 2 x RCF SUB 708-AS MK3 Active Subwoofer
- 2 x Speaker Poles
- 2 x 3m XLR Cables
RCF ART 712-A MK5 Active Speaker
ART 712-A MK5 is a unique product in its category. The 1.75″ compression driver offers unique vocal clarity and sound projection. The 12” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
Features
- 129 dB Max SPL
- 1400 WATT 2-way peak power
- 90° x 60°, Wide dispersion constant directivity horn
- Innovative DSP Processing
- 1,75″ Compression Driver
- 12″ Woofer
- FiRPHASE Technology
- XBOOST Low Frequencies Enhancer
RCF Audio SUB 708-AS MK3 Active Subwoofer
Take the hassle out of live sound
The RCF SUB 708-AS MK3 is a portable 18″ high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 133 dB with exceptional headroom. Designed as the ideal complement for 8″ or 10″ loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 708-AS MK3 is perfect for small to mid-sized venues and portable applications.
Legendary subwoofers
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self-powered design, long-term reliability, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience in both live sound or DJing applications.
Power That Moves
RCF’s improvements in transducer design make them stronger and more powerful so the amplifier follows the evolution. With 1400W peak power, the Class-D amplifier manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. The speaker design is energy-efficient so there’s no need for a cooling fan. The amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet with no moving parts. The stereo input circuit with crossover features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.
SUB 7 Series subwoofers can be configured from the rear panel, and features a full set of commands:
– X-OVER PRESET 80Hz/120Hz
– POLARITY REVERSE
– OUT SIGNAL, LINE / HIGH PASS
– POLARITY REVERSE
– OUT SIGNAL, LINE / HIGH PASS
Bass Motion Control
When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.
The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.
Tour-Ready Workhorse
The subwoofer is suitable for a wide range of live sound applications. The rugged all-plywood cabinet is easy to carry and stack, due to its light-weight. All are equipped with ergonomic handles with rubber grips for easy set-up and tear down. The M20 threaded pole mount on the top allows the cabinet to support speakers with a pole mount. The heavy-duty polyurea coating, the powder-coated metal grille, and the rugged structure of the cabinet withstand long-term use and transportation. Separate housing for the amplifier guarantees component efficiency and reliability. An acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity. With its frontal vented ports, the subwoofer can also be used in recessed spaces.
Features
- 1400 Watt Class-D Amplifier
- 18” Woofer, bass reflex housing
- Stereo Crossover
- Switchable Crossover Frequencies
- Polarity-reverse switch
- Electronic equalization, soft limiter and protection
- Stereo XLR input, Stereo XLR signal output
- Bass Motion Control excursion management
RCF ART 712-A MK5 Active Speaker
Acoustical specifications
Frequency Response: 50 Hz ÷ 20000 Hz
Max SPL @ 1m: 129 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 60°
Transducers
Compression Driver: 1 x 1.0”, 1.75” v.c
Woofer: 1 x 12”, 2.5” v.c
Input/Output section
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Mic. Input Sensitivity: -32 dBu
Processor section
Crossover Frequencies: 1600
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, MIC/Line
Power section
Total Power: 1400 W Peak
High frequencies: 400 W Peak
Low frequencies: 1000 W Peak
Cooling: Convection
Connections: VDE
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: PP Composite
Hardware: 2 x M10
Handles: 1 on top, 1 each side
Pole mount/Cap: 35 mm insert
Grille: Steel
Colour: Black
Size / Weight
Height: 637 mm / 25.08 inches
Width: 387 mm / 15.24 inches
Depth: 363 mm / 14.29 inches
Weight: 17.8 kg / 39.24 lbs
Shipping information
Package Height: 680 mm / 26.77 inches
Package Width: 440 mm / 17.32 inches
Package Depth: 420 mm / 16.54 inches
Package Weight: 20.6 kg / 45.42 lbs
RCF Audio SUB 708-AS MK3 Active Subwoofer
- Power Supply Requirements: 220-240V
- Frequency Response: 35Hz – 120Hz, -3dB
- Maximum SPL: 133dB
- Woofer: 18” with 3” Voice Coil
- Input Connector: Stereo XLR
- Output Connector: Stereo XLR
- Input Sensitivity: -2dBu/+4dBu
- Crossover Frequencies: 80Hz – 110Hz
- Protections: Thermal and RMS
- Limiter: Soft Limiter
- Controls: Volume, EQ, Phase, Crossover
- Amplifier Cooling: Convection
- Amplifier Connections: VDE Connector
- Cabinet Material: Baltic Birch Plywood
- Handles: 2 x Side Handles
- Hardware: Pole Mount
- Pole Mount/Cap: Yes
- Grille: Steel
- Colour: Black
- Dimensions:Height: 693 mm / 27.28 inchesWidth: 505 mm / 19.88 inchesDepth: 685 mm / 26.97 inches
- Weight: 40kg / 88.18lbs
