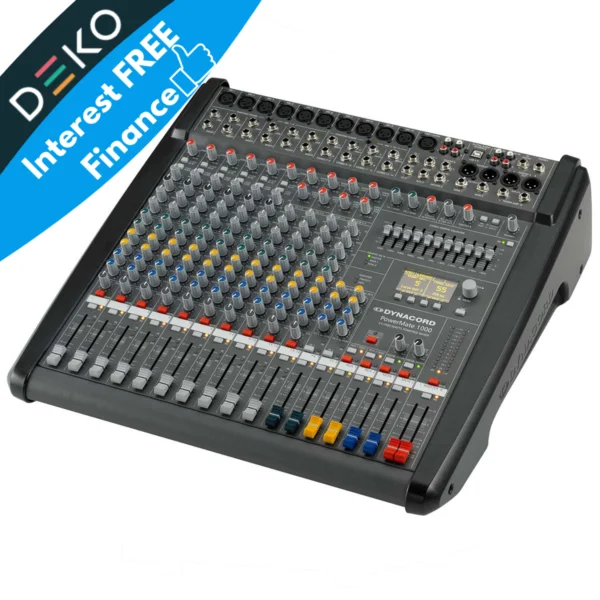

Dynacord PowerMate 1000-3 10‑Channel Compact Power-Mixer

Dynacord PowerMate 1000-3 10‑Channel Compact Power-Mixer

£2,890.00

Low Stock

The Dynacord PowerMate 1000-3 compact power mixers incorporate profound know‑how, based on our research, development and inter‑communication with our customers in the professional audio market, for decades.

Low Stock

Seen This Cheaper Somewhere?

Seen this cheaper somewhere?




    Product Details





    EAN: 8717332455584 SKU: DC-PM1000-3 Categories: , Brand:

    Product Details

    Overview

    The Dynacord PowerMate 1000-3 compact power mixers incorporate profound know‑how, based on our research, development and inter‑communication with our customers in the professional audio market, for decades.

    It incorporates not less than six dedicated audio devices into one compact frame: mixing console, two effects units, graphic equalizer, USB audio interface and power amplifier. Each of them is on the highest quality level as you would expect from a stand‑alone device. The PowerMate is a real all‑rounder for almost all applications with maximum feature set at minimum size.

    The mixing section starts with 10 lowest noise, discrete microphone preamps. 6 auxiliary busses, two of them switchable pre/post fader, allow high flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate‑reverbs. Further, each preset can be edited and stored to 20 User memories.

    The built in USB audio interface shares 4 playback and four recording channels simultaneously with a PC or Mac, please see information on available drivers, following studio standard 24‑bit / 96 kHz. An additional MIDI interface allows integration of instruments, such as keyboards. A license for Steinbergs Cubase software is part of the package.

    The 11 band stereo graphic equalizer can be routed flexible to master or monitor channels.

    The amplifier is extremely powerful with 2 x 1000 W / 4 Ohms (RMS). Due to modern switching mode power supply technology and a class‑D output stage, it’s very efficient and lightweight, too. An optional speaker protection allows limitation of long‑term power without giving up dynamics.

    Finally, the slim housing is protected by a rugged plastic lid with integrated handle for easy transportation.

    Features

    • Intuitive mixer with 10 input channels (6 Mic/Line + 4 Mic/Stereo-Line)
    • Very powerful and reliable amplifier with 2 x 1.000 Watts / 4 Ohms
    • 2 High-Quality editable effects, 100 factory and 20 user presets
    • Professional 4×4 24-bit / 96 kHz USB interface with MIDI
    • Lightweight (14 kg) road-ready package with extra robust cover-lid

    Product Specifications

    Specifications

    Channels (Mono + Stereo)6 + 4
    Auxiliarys (MON, FX, AUX)2 Pre, 2 Post, 2 Pre/Post switchable
    Max. Single Channel Output Power, Dynamic-Headroom, IHF-A
    into 2.66 Ω2 x 1600 W
    into 4 Ω2 x 1250 W
    into 8 Ω2 x 675 W
    Max. Single Channel Output Power, Continuous, 1 kHz, THD = 1%
    into 2.66 Ω2 x 1350 W
    into 4 Ω2 x 1150 W
    into 8 Ω2 x 650 W
    Maximum Midband Output Power, 1 kHz, THD = 1%, Dual Channel
    into 2.66 Ω2 x 1350 W
    into 4 Ω2 x 1000 W
    into 8 Ω2 x 600 W
    Rated Output Power, 20 Hz to 20 kHz, THD < 0.5%, Single Channel
    into 4 Ω2 x 900 W
    into 8 Ω2 x 450 W
    Maximum Output Voltage, of power amplifier, 1 kHz, no load74 Vrms
    THD, at 1 kHz, MBW = 80 kHz
    MIC input to Master A L/R outputs, +16 dBu, typical< 0.005%
    POWER AMP INPUTS to Speaker L/R outputs< 0.075%
    DIM 30, power amplifier, 3.15 kHz, 15 kHz< 0.05%
    IMD-SMPTE, power amplifier, 60 Hz, 7 kHz< 0.15%
    Frequency Response, -3 dB, ref. 1 kHz
    Any input to any Mixer output15 Hz to 70 kHz
    Any input to Speaker L/R output20 Hz to 30 kHz
    Crosstalk, 1 kHz
    Amplifier L/R< -85 dB
    Channel to Channel< -80 dB
    Mute- & Standby-Switch attenuation> 100 dB
    Fader & FX/AUX/MON-Send attenuation> 85 dB
    CMRR, MIC input, 1 kHz> 80 dB
    Input Sensitivity, all level controls in max. position
    MIC-74 dBu (155 μV)
    LINE (Mono)-54 dBu (1.55 mV)
    LINE (Stereo)-34 dBu (15.5 mV)
    CD (Stereo)-34 dBu (15.5 mV)
    POWER AMP INPUTS+8 dBu (1.95 V)
    Maximum Level, mixing desk
    MIC inputs+21 dBu
    Mono Line inputs+41 dBu
    Stereo Line inputs+30 dBu
    All other inputs+22 dBu
    All other outputs+22 dBu
    Input Impedances
    MIC2 ㏀
    Insert Return3.3 ㏀
    2Track Return & CD In10 ㏀
    All other inputs> 15 ㏀
    Output Impedances
    Phones47 Ω
    All other outputs75 Ω
    Equivalent Input Noise, MIC input, A-weighted, 150 ohms-130 dBu
    Noise, Channel inputs to Master A L/R outputs, A-weighted
    Master fader down-97 dBu
    Master fader 0 dB, Channel fader down-91 dBu
    Master fader 0 dB, Channel fader 0 dB, Channel gain unity-83 dBu
    Signal/Noise-Ratio, power amplifier, A-weighted, 4 Ω105 dB
    Output Stage Topology, amplifierClass D
    Equalization
    LO Shelving±15 dB / 60 Hz
    MID Peaking, mono inputs±15 dB / 100 Hz to 8 kHz
    MID Peaking, stereo inputs±12 dB / 2.4 kHz
    HI Shelving±15 dB / 12 kHz
    Master EQ 11-band (63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12kHz)±10 dB / Q = 1.5 to 2.5
    Filter
    LO-CUT, mono inputsf = 80 Hz, 18 dB/oct.
    VOICE FILTER, mono inputsswitchable
    FEEDBACK FILTER, MON 1/270 Hz to 7 kHz, Notch, -9 dB
    Speaker ProcessingLPN, switchable
    Effects
    TypeDual stereo 24/48-bit multi effects processors
    Effects presets100 Factory + 20 User, Tap-Delay
    Remote controlFootswitch, MIDI
    Display128 x 64 pixels, OLED
    Digital Audio Interface
    Channels4 In / 4 Out
    AD/DA Conversion24-bit
    Sampling Rate44.1 / 48 / 88.2 / 96 kHz
    PC InterfaceUSB2.0, Female Type B
    Supported OSSee documentation
    Peak Display6 dB before Clip
    MIDI Interface5-pin DIN connector, In / Out
    Output Power Control (Speaker Protection)Adjustable longterm RMS Limiter
    Protection
    Mixer Outputs (Relay controlled)MON 1, MON 2, MASTER A
    AmplifierAudio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-on Delay,
    Back EMF
    Switching Mode Power Supply (μC controlled)Inrush Current Limiters, Mains Over/Undervoltage, Mains Over Current, High Temperature
    CoolingContinuous speed controlled Fans
    Phantom Power, switchable in groups48 V DC
    Power Requirements (SMPS with auto range mains input)100 V to 240 V AC, 50 Hz to 60 Hz
    Power Consumption, at ⅛ maximum output power, 4 Ω450 W
    Safety ClassI
    Ambient Temperature Limits+5 °C to +40 °C (40 °F to 105 °F)
    Dimensions (W x H x D), mmWith lid:
    510.5 x 164.5 x 571.5
    Rack-mount:
    483.0 x 135.0 x 443.7
    Weight
    Net Weight, without lid12.5 kg
    Net Weight, with lid14 kg
    Shipping Weight17 kg
    Warranty36 months
    Optional Accessories
    RMK-1000-3 (Rack Mount Kit for PowerMate 1000)F01U161506 (DC-RMK1000-3)
    Gooseneck Lamp, 12V/5W, 12”, XLR 4 pol.F01U118983 (DC-LITLITE-4P)
    FS 11 (Footswitch with LED)F01U100598 (DC-FS11)

    Device in rated condition, unity gain (MIC gain 20 dB), all faders position 0 dB, all pots in mid position, master fader +8 dB, LPN HIGH, amplifier load 8 ohms, dual channel, mains voltage 230 V/50 Hz or 120 V/60 Hz, unless otherwise specified.
