Electro-Voice EKX-12P & EKX-18SP Package
Electro-Voice EKX-12P & EKX-18SP Package
£3,779.00
Awaiting Stock, ETA TBC! Join waiting list below.
Awaiting Stock, ETA TBC! Join waiting list below.
– Please note: this item will need palleting, shipping charges will apply, the charges will be displayed at checkout!
The Electro-Voice EKX-12P & EKX-18SP Package is a system that packs a mean punch for those larger events.
SKU: EKX-12P & EKX-18SP PACKAGE
Categories: Active Speakers, Live Sound, Speaker Packages
Brand: Electro-Voice
Overview
– Please note: this item will need palleting, shipping charges will apply, the charges will be displayed at checkout!
Electro-Voice EKX-12P & EKX-18SP Package
ELECTRO-VOICE EKX-12P 12″ POWERED LOUDSPEAKER
The Electro-Voice EKX-12P 12″ Powered Loudspeaker is a two-way loudspeaker with a variety of premium components engineered to deliver an incredible sonic performance. Part of this Electro-Voice EKX-12P & EKX-18SP Package it has Quick Smart DSP technology , the speaker offers incredible processing with intuitive LCD menu navigation and single-knob user interface. The 1500-watts of peak output power works with Class-D amplification to deliver a powerful, sensitive performance thanks to specially engineered EV transducers. The EKX-12P features an intelligent thermal management system to ensure a totally reliable performance in even the most demanding environmental conditions. Housed within a 15mm plywood enclosure, the speaker includes internal bracing, 8 x M10 threaded mounting holes, aluminium pole mounts and metal handles for easy storage and transport.
Features
- QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
- High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
- Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
- Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

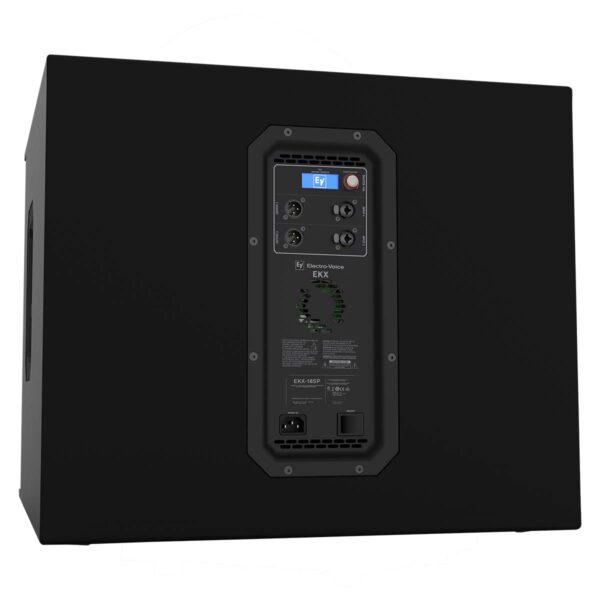

The Electro Voice EKX-18SP Powered 18″ Subwoofer is the perfect addition to your set-up. Its lightweight, compact 15-mm wood enclosure fits in great with its internal bracing, and durable EV Coat finish. It comes with large slot ports – for low distortion, a metal grille reinforcement bar and an M20 threaded pole mount plate.
Features
- 1600 W (peak), 134 dB peak SPL on the EKX-18S utilizing high-sensitivity transducers, designed and engineered by EV
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish
- Large slot ports for low distortion and excellent bass extension
- Metal grille reinforcement bar (two bars on the EKX-18S)
- M20 threaded pole mount plate
GRAVITY GSP2332TPB TWO PART SPEAKER POLE, 35MM TO M20
The Gravity GSP2332TPB is a 35mm pole to mount satellite speakers on subwoofers. The heavy duty construction of powder coated steel is height adjustable from 105 to 140 cm. The Gravity GSP2332TPB features an M20 bottom end and steel collar with safety pin to securely lock the extension pole in place. The base tube is a two-piece assembly that can be unscrewed to result in an amazingly short transport length of 54 cm only.
Two Part Speaker Pole, 35 mm to M20, 1400 mm
Item No.: GSP2332TPB
Solid and durable construction
Ergonomic handling
Two part pole
Compact transportation
See Our Reviews
Absolutely brilliant !!!!
Absolutely brilliant !!!!! Cannot recommend enough. These guys knew exactly what they were on about really helpful from start to finish fast delivery nothing was difficult about my whole experience. Ian absolute legend always willing to help and advise won’t be long before I’m looking for something else I’m sure
See more reviews here: https://uk.trustpilot.com/review/techformusic.co.uk
Specifications
EKX-12P
| Frequency Response (-3 dB) | 60 Hz – 18 kHz¹ |
| Frequency Range (-10 dB) | 50 Hz – 20 kHz¹ |
| Maximum SPL | 132 dB² |
| Coverage (H x V) | 90″ x 60″ |
| Power Rating | 1500 W |
| LF Transducer | EVS-12M 300 mm (12 in) |
| HF Transducer | DH-1M 1-inch titanium compression driver |
| Crossover Frequency | 1.7 kHz |
| Connectors | (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output |
| Enclosure | 15 mm plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Suspension | (8) M10 threaded mounting points |
| Dimensions (H x W x D) | 607 mm x 375 mm x 356 mm (24 in x 15 in x 14 in) |
| Net Weight | 18.8 kg (41.4 lb) |
| Shipping Weight | 22.9 kg (50.4 lb) |
| Power Consumption | 1.8 A³ |
¹ Full space measurement using the music DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.
EKX-18SP
- Frequency Response (-3 dB): 50 Hz – 100 Hz Half Space Measurement
- Frequency Range (-10 dB): 35 Hz – 300 Hz Half Space Measurement
- Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB
- Maximum SPL: 134 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
- Recommended High-Pass Frequency: 30 Hz
- Coverage (H x V): 90 x 60
- Power Handling (Continuous / Peak): 400 W/1600 W
- LF Transducer: EVS-18C 457 mm (18 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 7.0 Ω
- Connector Type: Dual NL4
- Enclosure Material: 15 mm, plywood with EVCoat
- Grill: 18 AWG steel with powdercoat
- Dimensions (H x W x D): 520 mm (20.47″) x 606 mm (23.86″) x 612 mm (24.09″)
- Net Weight: 31.8 kg (70.11 lbs)
- Shipping Weight: 40.1 kg (88.41 lbs)
GRAVITY GSP2332TPB TWO PART SPEAKER POLE, 35MM TO M20
| Type | Speaker Stands |
| Tubing material | Steel |
| Tubing colour | Black |
| Tubing surface | Powder coated |
| Min height | 1050 mm |
| Max height | 1400 mm |
| Transport length | 540 mm |
| Height adjustment | Clamp with safety pin |
| Material of height adjustment | Steel |
| Connector 1 | M20 |
| Connector 2 | 35 mm |
| Max. load | 40 kg |
| Interchangeable rings | 1 x 30 |
| Black ring pack included | Yes |
| Weight | 2,2 kg |
