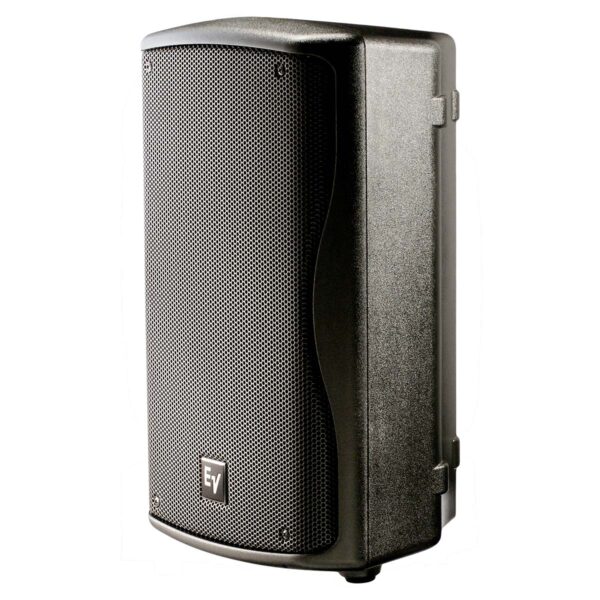

Electro-Voice ZX1-90 8″ Passive Speaker

Electro-Voice ZX1-90 8″ Passive Speaker

£342.00

Low Stock


EAN: 8717332601585 SKU: ZX1-90 Category: Brand:

Low Stock


Electro-Voice ZX1-90 8″ Passive Speaker – 8″ 2‑way passive full‑range composite loudspeaker. The Electro-Voice ZX1-90 8″ Passive Speakers produce a smooth, wide frequency response which is ideal for mains, fills, or monitors.


Overview

Electro-Voice ZX1-90 8″ Passive Speaker

EV 8″ 2‑way passive full‑range composite loudspeaker



The Electro-Voice ZX1-90 8″ Passive Speakers produce a smooth, wide frequency response which is ideal for mains, fills, or monitors.

  • Velocity-compensated port for exceptional LF
  • Long-excursion weather-treated EV8L woofer
  • 1.25-inch DH2005 titanium HF compression driver
  • Rotatable 90º x 50º horn for flexible coverage
  • Passive crossover with full-band overload protection
  • High sensitivity, 123 dB maximum SPL
  • Power handling: 200 W continuous, 800 W peak
  • High-impact polypropylene enclosure
  • Compact monitor-friendly wedge shape
  • Integrated pole mount adapter and pocket handle
  • Metric mounting inserts (4)
  • Available in black or white

See what our customers have to say on Trustpilot:

proffesional, experienced , friendly , knowledgeable company.

i used this company for the first time a week or so ago . i bought 4 equinox helix xp lights .delivery was a couple of days with a good parcel company . i found their website easy to navigate and their prices really competative .. i had a couple of questions so spoke to them on the phone which too was really easy and the answered promptly .. were professional and knew the answers .. all in all a fantastic experience and a quality product and company .. i will be using these again .. thankyou so much



I would recommend them for anyone looking to purchase any music equipment.

DJ Kit and production equipment from the UK’s biggest DJ store techformusic | Buy DJ Equipment at low prices | 0% Finance available.

EV, ELECTROVOICE, ZX1, ZX1-90, EVZX, EV-ZX1

Specifications

Freq. Response¹ (-3 dB)60 Hz – 20 kHz
Freq. Range¹ (-10 dB)48 Hz – 20 kHz
Rec. Hipass Frequency40 Hz
Axial Sensitivity¹92 dB (1W/1m)
Max Calculated SPL121 dB
Horizontal Coverage100°
Vertical Coverage100°
Rated System Power200W Cont. 2, 400W Prog., 800W Peak
LF TransducerEV8L, 8 in (203mm) Driver
HF TransducerDH2005, 1 in. (25.4mm) Exit Compression Driver
Crossover Frequency1.7 kHz
Nominal Impedance8 Ohms
Minimum Impedance6 Ohms
ConnectorsNeutrik Speakon NL4
Enclosure MaterialHigh Impact Polymer
GrillePolyester Powder Coated, 18GA Galvanized Steel
Dim (H x W x D)457mm x 282mm x 264mm (17.98″ x 11.12″ x 10.38″)
Net Weight8.4 kg (18.5 lbs)
Shipping Weight10.2 kg (22.5 lbs)
