Overview
KEY FEATURES

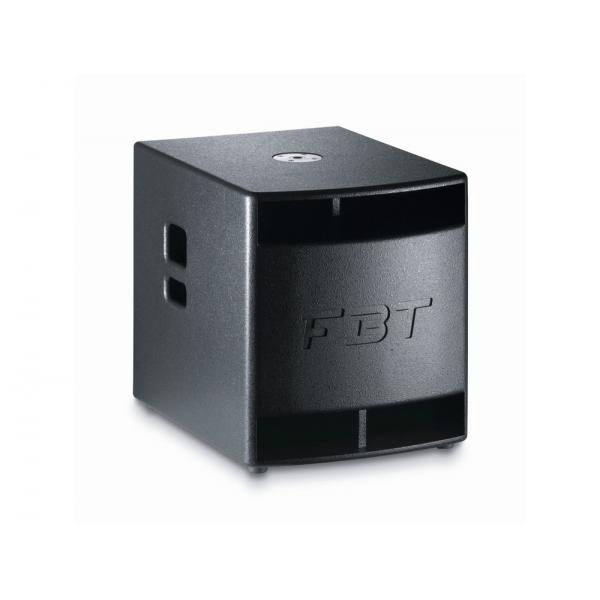

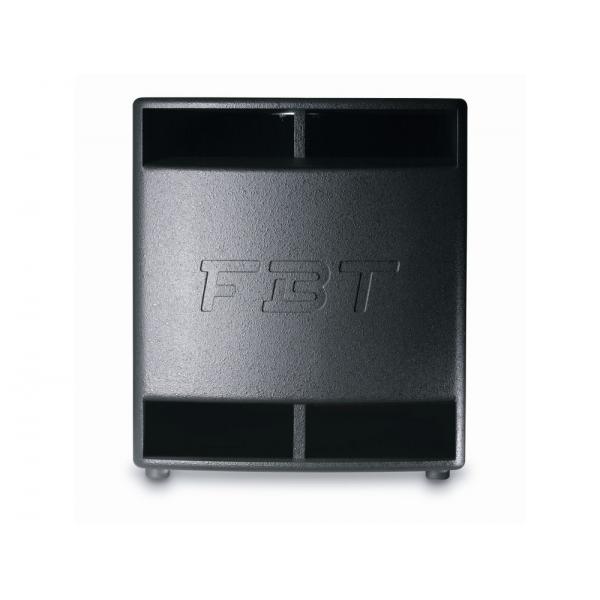

- Self-powered bandpass subwoofer.
- 18” (460 mm) custom neodymium B&C woofer with a 3” (75 mm) voice coil.
- Built-in 900w PWM amplifier.
- Switch mode power supply.
- Analogue signal processor with limiter.

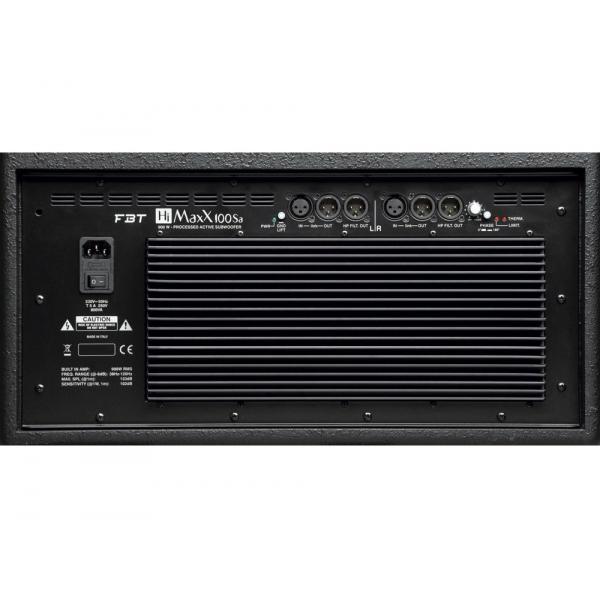

Control panel with:
- XLR/input and XLR stereo outputs with Hi-Pass, filter for connecting the satellites.
- Volume.
- Ground-Lift.
- 0°-180° phase inverter switch.
- Limiter LED.
- Box in 18 mm (0.7”) birch plywood.
- The special “bandpass” acoustic loading increases efficiency and maximum SPL.
- Eight M10 mounting points, stand socket and two integrated wooden handles.
- Optional 4 swivel-mount casters 80 mm ø (3.15”) on request.
Compact and light weight, HiMaxX brilliantly solve all the most demanding requests from buffs, musicians and professionals looking for powerful, versatile and very high quality loudspeaker enclosures. Ideal for live and sound reinforcement applications requiring ease of transport, they are also suited to fixed installations, thanks to the cabinets’ format and optional accessories.
A powerful dynamic design for aggressive clean-cut lines. A sturdy light-weight box that ensures great versatility and is ready for installation, thanks to its special mounting points and optional accessories. The asymmetrical design enables the enclosures to be used as stage monitors.
A specially designed control panel ensures ease of use and intuitive control. Mic/line input, auxiliary stereo input with (HiMaxX 40a), 3-band EQ, ground-lift, diagnostic LED.
Loudspeaker totally redesigned in collaboration with B&C. FBT studied and designed a special chassis, a more efficient ventilation circuit with a consequent reduction of 2dB “power compression”, a considerably stiffer cone to improve reliability and distortion and an even more powerful neodymium magnet to increase control and efficiency.
The development of the innovative amplifier is the result of years of research by the FBT R&D labs. It manages to combine the contrasting features of lightness, high power, efficiency and reliability, using the very latest technology. A switch mode power supply to reduce the weight and increase the power output velocity, a very high performance PWM amplifier for the low frequencies, to maximize the power fed out with minimum heat dissipation.
The silent preamplifier manufactured with SMD technology has the job of handling the equalization, 24dB/oct crossover, sophisticated protections, limiter and the commands of the control panel.
The horn’s profile has been redesigned to ensure greater directivity control and lower distortion. The dispersion angle is 90°H x 60°V.
Research work carried out with the university on the cabinet’s resonance and the fl uid dynamics of the air led to the manufacture of a box in polypropylene with injection of absolutely inert GAS and efficient reflex ducts free from undesired turbulence.
