Description
Overview

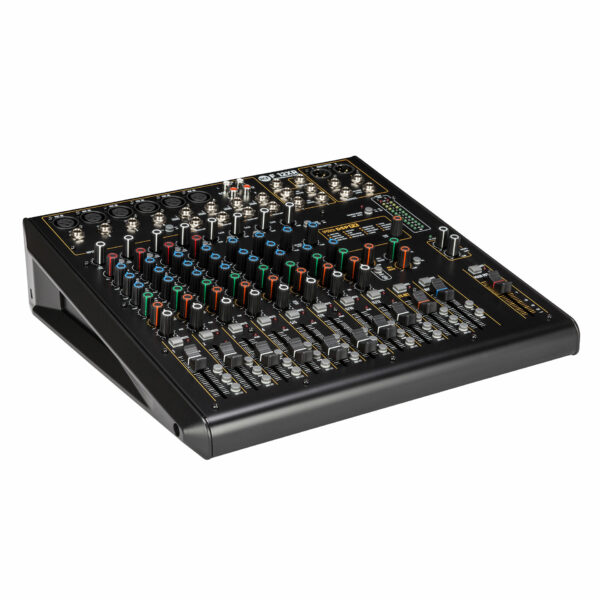

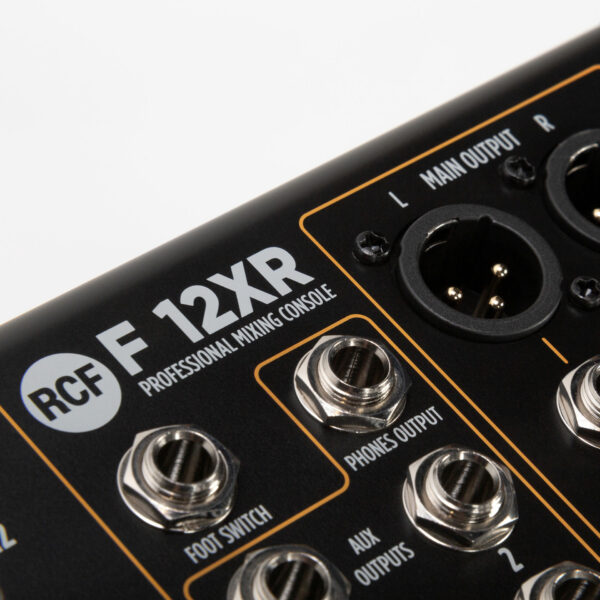

RCF F 12XR
- Sturdy Metal Chassis
- PRO DSP FX onboard with 16 presets
- Stereo Recording and Playback via USB port
- Balanced main output audio path from input to output
- 4 single control compressors
- Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
- Robust, compact and attractive design.
- Designed and Engineered in Italy
- Internal Universal Power Supply
ENHANCED ANALOG MIXING FLEXIBILITY
Premium RCF next-generation F Series mixers stages high-quality sound in five formats ranging from 6 to 24 channels. Aesthetically pleasing panel and high contrast graphics, premium quality connections and easy routing make it possible to mix your music with minimal technical expertise and the best results. Housed in a sturdy metal chassis, each mixer builds on a fully balanced and low noise audio path from input to output, with single control compressors* to limit signal peaks and a modern sounding EQ.
State Of The Art EQ
State-of-the-art 3 band EQ on mono channels,
2 bands EQ on stereo channels for precise shaping of sound.
High Quality Preamplifiers
High quality preamplifiers with phantom power, inspired by the E-Series Mixers, offer high level sound and dynamics. Line level signals are less noisy when connected using the separate line input jack socket.
Product Specifications
| FREQUENCY RESPONSE: | 20 Hz ÷ 20 kHz |
| THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED): | <0,02% A-Weighted |
| POWER SUPPLY: | Internal |
| VOLTAGE REQUIREMENTS: | 100 V – 240 V |
| POWER CONSUMPTION (W): | 24 W |
| GAIN RANGE: | 0 dB ÷ -50 dB |
| GAIN SELECTION: | 20 dB ÷ -30 dB |
| HI-Z LINE INPUTS IMPEDANCE (MOHM): | 1 Mohm |
| HI-Z LINE INPUTS: | 1 |
| INPUT NOISE LEVEL (DBU A-WEIGHTED): | -124 dBu A-Weighted |
| MIC INPUTS IMPEDANCE (KOHM): | 14 kohm |
| LINE: | 4 |
| LINE INPUT IMPEDANCE (KOHM): | 21 kohm |
| LOW CUT: | 80 Hz |
| MIC: | 6 |
| PHANTOM POWER +48V: | Yes |
| STEREO LINE: | 4 |
| STEREO LINE GAIN SELECTION: | 20 dB ÷ -30 dB |
| STEREO LINE INPUT IMPEDANCE: | 15 kohm |
| MAIN MIX: | 1 |
| CONTROL ROOM: | Yes |
| FX SEND: | 1 |
| AUX SEND: | 1 |
| AUX OUTPUT: | 2 |
| GROUP OUT: | 1 |
| PHONES: | 1 |
| MAIN OUT LEVEL (DBU): | 28 dBu |
| AUX OUT LEVEL (DBU): | 28 dBu |
| GROUP OUT LEVEL (DBU): | 28 dBu |
| PHONES OUT IMPEDANCE (OHM): | 150 ohm |
| RCF COMPRESSORS: | n° 4 Single Control Compressors on Channels 1 to 4 |
| INPUT CHANNELS EQ: | 2 Shelving / 1 Generic |
| DESCRIPTION: | High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ 1,250 kHz Bell Low: +/-15 dB @ 100 Hz Shelving
|
| AUX: | 1 PRE/POST |
| FX POST: | 1 |
| SEND EFFECTS: | 1 |
| TYPE: | B |
| PLAY TRK: | 2 |
| REC TRK: | 2 |
| SUPPORTED SAMPLE RATE (KHZ): | 44.1, 48.0 kHz |
| FOOTSWITCH: | Yes |
| CE MARKING: | Yes |
| CABINET/CASE MATERIAL: | Metal |
| COLOR: | Black |
| DEPTH: | 355 mm / 13.98 inches |
| HEIGHT: | 97 mm / 3.82 inches |
| WEIGHT: | 4.5 kg / 9.92 lbs |
| WIDTH: | 373 mm / 14.69 inches |
| PACKAGE DEPTH: | 425 mm / 16.73 inches |
| PACKAGE HEIGHT: | 140 mm / 5.51 inches |
| PACKAGE WEIGHT: | 5.5 kg / 12.13 lbs |
| PACKAGE WIDTH: | 400 mm / 15.75 inches |
