Description
Overview
Features
- 1400 Watt Digital Amplifier
- 12″ Woofer, bass reflex housing
- Stereo crossover
- Switchable crossover frequencies
- Phase-reverse switch
- Electronic equalization, soft limiter and protection
- Stereo XLR input, Stereo XLR signal output

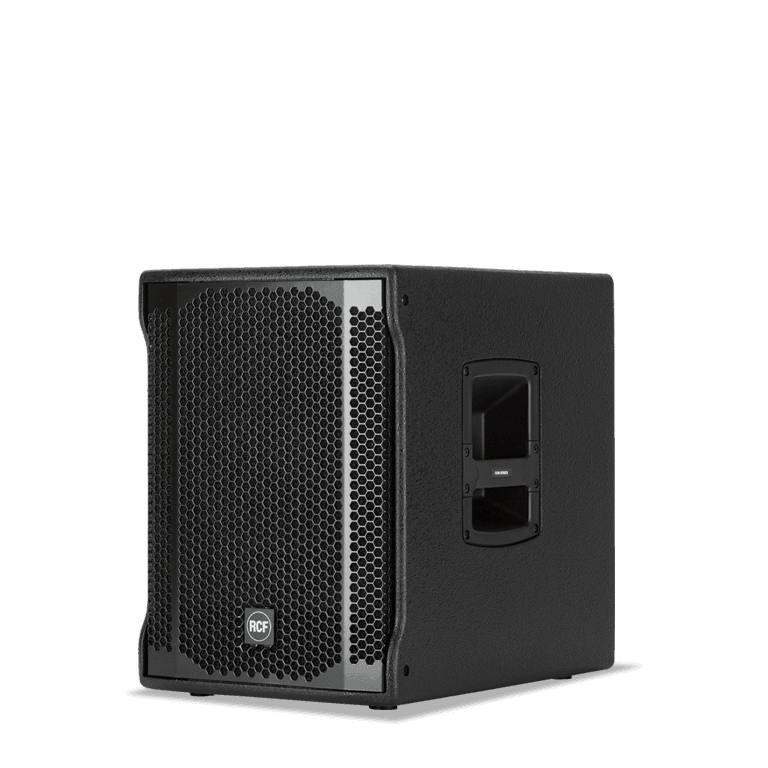

Housing a 12” woofer, the SUB 702-AS II, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to 8” or 10” speakers, creating small but powerful satellite systems with outstanding performance. Thanks to its compact size it can easily be carried and is very quick and easy to start using the built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the satellite.
Powerful lows
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, smaller dimensions compared to the competitors, self-powered design, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive musical experience.
Cabinet & mechanics

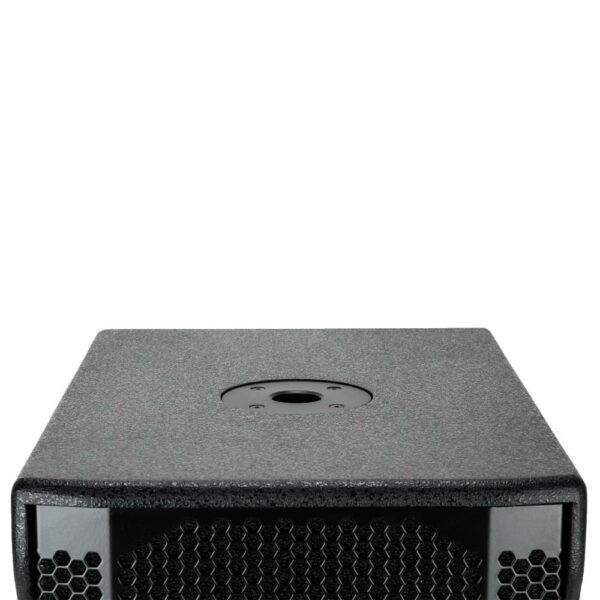

The RCF cabinets are made of birch plywood coated with a textured black finish. The subs are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle allows the use of the box in various configurations. The powder coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.
Powerful class D amplifiers
RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.
Product Specifications
| Frequency Response: | 40 Hz ÷ 120 Hz |
| Max SPL @ 1m: | 129 dB |
| Woofer: | 12”, 2.5” v.c |
| Input signal: | bal/unbal |
| Input connectors: | XLR |
| Output connectors: | XLR |
| Input sensitivity: | -2 dBu/+4 dBu |
| Hi-Pass Frequencies: | 110 Hz |
| Low-Pass Frequencies: | 80 Hz |
| Protections: | Thermal, RMS |
| Limiter: | Soft Limiter |
| Controls: | Volume, EQ, Phase, Xover |
| Total Power: | 1400 W Peak, 700 W RMS |
| Low frequencies: | 1400 W Peak, 700 W RMS |
| Cooling: | Convection |
| Connections: | VDE |
| CE compliance: | Yes |
| Cabinet/Case Material: | Baltic birch plywood |
| Handles: | 2 Side |
| Pole mount/Cap: | Yes |
| Color: | Black |
| Height: | 487 mm / 19.17 inches |
| Width: | 354 mm / 13.94 inches |
| Depth: | 498 mm / 19.61 inches |
| Weight: | 18.2 kg / 40.12 lbs |
