Description
Overview
Sennheiser XSW 2-ME3 Headmic Set, GB Band.
Hands-free performance. High flexibility for those willing to go a step further. Sennheiser XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.
The XSW 2-ME3 Headmic Set is an easy to use all-in-one wireless system for singers and performers, excellent for live sound that involves dancing and singing all at the same time. Metal receiver housing and rackmount kit included.
What’s in the Box

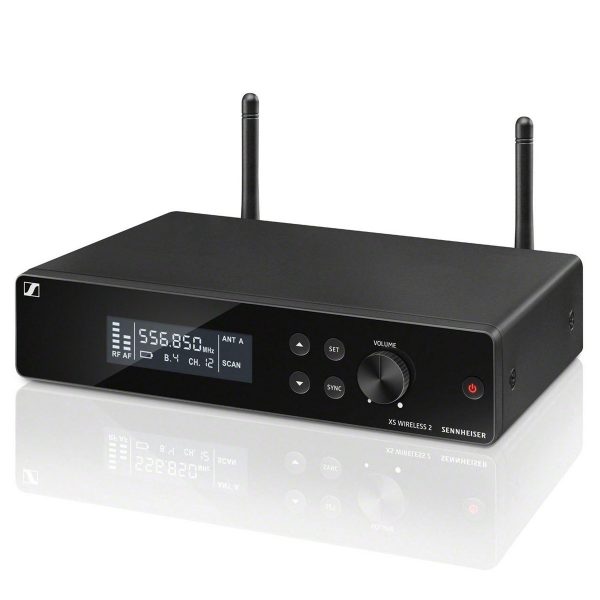

- 1 receiver EM-XSW 2
- 1 bodypack transmitter SK-XSW
- 1 headset microphone ME 3-II
- 1 power supply NT 12-5 CW
- 2 AA batteries
- 1 rackmount kit
- 1 pouch
- user manual
Key Features
- Lightweight headmic for hands-free operation and compact bodypack transmitter
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
Specifications
Receivers
- Dimensions
- approx. 200 x 42 x 127 mm
- Weight
- approx. 680g
- Power supply
- 12 V DC nom. / 300 mA
- Housing
- Metal
- AF frequency response
- 50 to 16,000 Hz (–3 dB)
Transmitter
- Dimensions
- approx. 71 x 96 x 28 mm
- Weight
- approx. 95g
- Operating time
- approx. 10 hrs
- Power supply
- 2 AA size batteries, 1.5 V
- Housing
- robust ABS
- AF frequency response
- 50 to 16,000 Hz
- Microphone
- condenser
- Frequency response
- 50 to 16,000 Hz (–3 dB)
- THD, total harmonic distortion
- ≤ 0.9%
- Pick-up pattern
- cardioid
- Signal-to-noise ratio
- ≥ 103 dBA
- RF output power
- 10 mW
- Switching bandwidth
- up to 24 MHz
- Modulation
- wideband FM
- Output voltage
- 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Diversity reception
- True Diversity
- Frequency
- 8 frequency banks, each with up to 12 factory-preset channels
- Frequency range
- A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
- Sensitivity
- < 3 μV at 52 dB(A)rms S/N
- Squelch
- switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
- Synchronization
- 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Adjustment Range Transmitter
- 0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range
- 40 dB, adjustable in 5-dB steps
- Line / Mic level
- 20 dB, switchable
- Temperature Range
- operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle
- double superheterodyne
