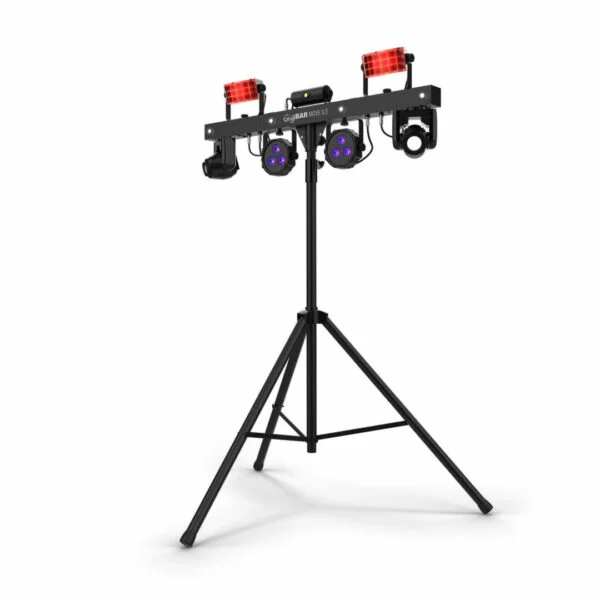

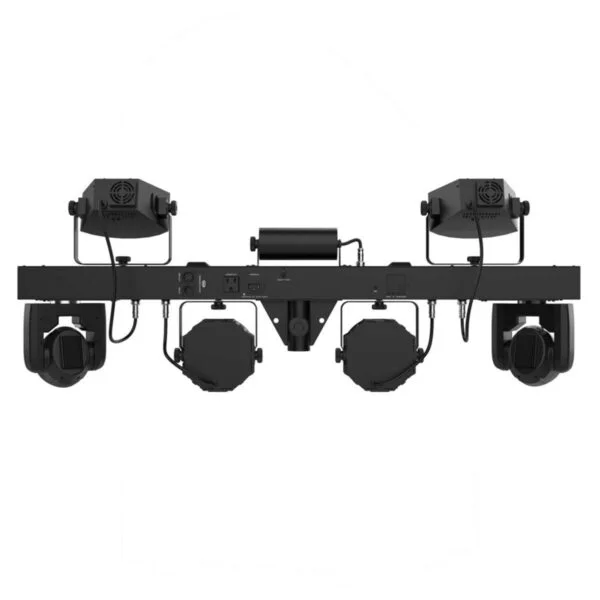

Chauvet GigBAR Move ILS

£829.00

In Stock

Seen This Cheaper Somewhere?

The Chauvet GigBAR Move ILS is a 5-in-1 pack and play system that controls the Instant Light Shows (ILS), our patent-pending lighting technology that expanded the possibilities of impressive light show synchronization quickly and easily.

EAN: 781462224103 SKU: GIGBARMOVEILS Categories: LED Light Effects, Lighting Packages Brand: Chauvet DJ

Overview

Chauvet GigBAR Move ILS

The Chauvet GigBAR Move ILS is a 5-in-1 pack-and-play system that controls the Instant Light Shows (ILS). ILS is a patent-pending lighting technology that expands the possibilities of impressive light show synchronization quickly and easily. GigBAR Move ILS can control any product in the ILS ecosystem, wired or wirelessly.

The GigBAR Move ILS has moving heads, derbies, washes, a laser, and strobe effect pre-mounted onto a single bar. It can be easily controlled via stand-alone, DMX, wireless RF remote, or wireless footswitch so you can get to the good times sooner.

Features

5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
Instant Light Shows (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver
Use the included RF remote to trigger the built-in shows without needing line of sight
Separate color and gobo wheels in moving heads allow for creative programming
Totem Mode keeps the moving heads focused on the dance floor
Easy navigation and access to all functions, directly from the full-color LCD display
Safely mounts to truss or ceilings using the 3/8 in threaded inserts
System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
Built-in UV LEDs illuminate fluorescent objects and make them pop
Individual control of each effect ensures your show looks the way you need it to
Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

Get your ‘Chauvet GigBAR Move ILS’ now!

Specifications

DMX Channels: 3, 27 or 46
DMX Connectors: 3- pin XLR
Pan and Tilt: 540°/180°
Colors: (moving head): 7 + white, continuous scroll at variable speeds
Gobos: (moving head): 7 + open, continuous scroll at variable speeds
Light Source:
(pars): 3 LEDs (quad-color RGB+UV) 3.5 W (1 A), 50,000 hours life expectancy
(strobe): 4 LEDs (white & UV) 5 W (1 A), 50,000 hours life expectancy
(derby): 6 LEDs (2 red, 2 green, 2 blue) 1 W (1 A), 50,000 hours life expectancy
(moving head): 1 LED (cool white) 10 W (2.3 A), 50,000 hours life expectancy
(laser): 650nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
Strobe Rate: 0 to 20 Hz
Beam Angle: (moving head): 11°
(pars): 19°
(strobe): 8°
Field Angle: (pars): 30°
(strobe): 18°
Coverage Angle: (derbv): 131°
(laser): 93°
Fits Tripod Size: 1.5 in (37.4 mm)
Illuminance:
(pars): 1,205 lux @ 2 m (per par)
(moving head): 1056 lux @ 2 m (per head)
(strobe): 86 lux @ 2 m (per LED)
Power Linking: 7 units @ 120 V; 12 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
81 W, 1.1 A @ 120 V, 60 Hz
79 W, 0.6 A @ 230 V, 50 Hz
Weight: 23.4 lb (10.7 kg)
Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
Approvals: CE, RoHS, UKCA, FDA, FCC
Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
Tripod leg width: 3.9 ft (1.2 m)
Footswitch Operating Frequency: 433 MHz
Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
Footswitch battery: 9 V alkaline
Included Controllers: RF remote, wireless footswitch
